<para>
|
|
|
To get the kernel and filesystem images, you either have to build them or download
|
|
|
pre-built versions.
|
|
|
- You can find examples for both these situations in the
|
|
|
- "<ulink url='&YOCTO_DOCS_QS_URL;#test-run'>A Quick Test Run</ulink>" section of
|
|
|
- the Yocto Project Quick Start.
|
|
|
+ For an example of how to build these images, see the
|
|
|
+ "<ulink url='&YOCTO_DOCS_QS_URL;#qs-buiding-images'>Buiding Images</ulink>"
|
|
|
+ section of the Yocto Project Quick Start.
|
|
|
+ For an example of downloading pre-build versions, see the
|
|
|
+ "<link linkend='using-pre-built'>Example Using Pre-Built Binaries and QEMU</link>"
|
|
|
+ section.
|
|
|
</para>
|
|
|
|
|
|
<para>
|
|
|
@@ -720,6 +723,261 @@
|
|
|
variable in the Yocto Project Reference Manual's variable glossary.
|
|
|
</para>
|
|
|
</section>
|
|
|
+
|
|
|
+ <section id='using-pre-built'>
|
|
|
+ <title>Example Using Pre-Built Binaries and QEMU</title>
|
|
|
+
|
|
|
+ <para>
|
|
|
+ If hardware, libraries and services are stable, you can get started by using a pre-built binary
|
|
|
+ of the filesystem image, kernel, and toolchain and run it using the QEMU emulator.
|
|
|
+ This scenario is useful for developing application software.
|
|
|
+ </para>
|
|
|
+
|
|
|

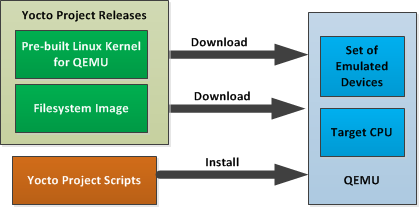

+ <mediaobject>
|
|
|
+ <imageobject>
|
|
|
+ <imagedata fileref="figures/using-a-pre-built-image.png" format="PNG" align='center' scalefit='1'/>
|
|
|
+ </imageobject>
|
|
|
+ <caption>
|
|
|
+ <para>Using a Pre-Built Image</para>
|
|
|
+ </caption>
|
|
|
+ </mediaobject>
|
|
|
+
|
|
|
+ <para>
|
|
|
+ For this scenario, you need to do several things:
|
|
|
+ </para>
|
|
|
+
|
|
|
+ <itemizedlist>
|
|
|
+ <listitem><para>Install the appropriate stand-alone toolchain tarball.</para></listitem>
|
|
|
+ <listitem><para>Download the pre-built image that will boot with QEMU.
|
|
|
+ You need to be sure to get the QEMU image that matches your target machine’s
|
|
|
+ architecture (e.g. x86, ARM, etc.).</para></listitem>
|
|
|
+ <listitem><para>Download the filesystem image for your target machine's architecture.
|
|
|
+ </para></listitem>
|
|
|
+ <listitem><para>Set up the environment to emulate the hardware and then start the QEMU emulator.
|
|
|
+ </para></listitem>
|
|
|
+ </itemizedlist>
|
|
|
+
|
|
|
+ <section id='installing-the-toolchain'>
|
|
|
+ <title>Installing the Toolchain</title>
|
|
|
+
|
|
|
+ <para>
|
|
|
+ You can download a tarball installer, which includes the
|
|
|
+ pre-built toolchain, the <filename>runqemu</filename>
|
|
|
+ script, and support files from the appropriate directory under
|
|
|
+ <ulink url='&YOCTO_TOOLCHAIN_DL_URL;'></ulink>.
|
|
|
+ Toolchains are available for 32-bit and 64-bit x86 development
|
|
|
+ systems from the <filename>i686</filename> and
|
|
|
+ <filename>x86_64</filename> directories, respectively.
|
|
|
+ The toolchains the Yocto Project provides are based off the
|
|
|
+ <filename>core-image-sato</filename> image and contain
|
|
|
+ libraries appropriate for developing against that image.
|
|
|
+ Each type of development system supports five or more target
|
|
|
+ architectures.
|
|
|
+ </para>
|
|
|
+
|
|
|
+ <para>
|
|
|
+ The names of the tarball installer scripts are such that a
|
|
|
+ string representing the host system appears first in the
|
|
|
+ filename and then is immediately followed by a string
|
|
|
+ representing the target architecture.
|
|
|
+ </para>
|
|
|
+
|
|
|
+ <literallayout class='monospaced'>
|
|
|
+ poky-glibc-<replaceable>host_system</replaceable>-<replaceable>image_type</replaceable>-<replaceable>arch</replaceable>-toolchain-<replaceable>release_version</replaceable>.sh
|
|
|
+
|
|
|
+ Where:
|
|
|
+ <replaceable>host_system</replaceable> is a string representing your development system:
|
|
|
+
|
|
|
+ i686 or x86_64.
|
|
|
+
|
|
|
+ <replaceable>image_type</replaceable> is a string representing the image you wish to
|
|
|
+ develop a Software Development Toolkit (SDK) for use against.
|
|
|
+ The Yocto Project builds toolchain installers using the
|
|
|
+ following BitBake command:
|
|
|
+
|
|
|
+ bitbake core-image-sato -c populate_sdk
|
|
|
+
|
|
|
+ <replaceable>arch</replaceable> is a string representing the tuned target architecture:
|
|
|
+
|
|
|
+ i586, x86_64, powerpc, mips, armv7a or armv5te
|
|
|
+
|
|
|
+ <replaceable>release_version</replaceable> is a string representing the release number of the
|
|
|
+ Yocto Project:
|
|
|
+
|
|
|
+ &DISTRO;, &DISTRO;+snapshot
|
|
|
+ </literallayout>
|
|
|
+
|
|
|
+ <para>
|
|
|
+ For example, the following toolchain installer is for a 64-bit
|
|
|
+ development host system and a i586-tuned target architecture
|
|
|
+ based off the SDK for <filename>core-image-sato</filename>:
|
|
|
+ <literallayout class='monospaced'>
|
|
|
+ poky-glibc-x86_64-core-image-sato-i586-toolchain-&DISTRO;.sh
|
|
|
+ </literallayout>
|
|
|
+ </para>
|
|
|
+
|
|
|
+ <para>
|
|
|
+ Toolchains are self-contained and by default are installed into
|
|
|
+ <filename>/opt/poky</filename>.
|
|
|
+ However, when you run the toolchain installer, you can choose an
|
|
|
+ installation directory.
|
|
|
+ </para>
|
|
|
+
|
|
|
+ <para>
|
|
|
+ The following command shows how to run the installer given a toolchain tarball
|
|
|
+ for a 64-bit x86 development host system and a 32-bit x86 target architecture.
|
|
|
+ You must change the permissions on the toolchain
|
|
|
+ installer script so that it is executable.
|
|
|
+ </para>
|
|
|
+
|
|
|
+ <para>
|
|
|
+ The example assumes the toolchain installer is located in <filename>~/Downloads/</filename>.
|
|
|
+ <note>
|
|
|
+ If you do not have write permissions for the directory into which you are installing
|
|
|
+ the toolchain, the toolchain installer notifies you and exits.
|
|
|
+ Be sure you have write permissions in the directory and run the installer again.
|
|
|
+ </note>
|
|
|
+ </para>
|
|
|
+
|
|
|
+ <para>
|
|
|
+ <literallayout class='monospaced'>
|
|
|
+ $ ~/Downloads/poky-glibc-x86_64-core-image-sato-i586-toolchain-&DISTRO;.sh
|
|
|
+ </literallayout>
|
|
|
+ </para>
|
|
|
+
|
|
|
+ <para>
|
|
|
+ For more information on how to install tarballs, see the
|
|
|
+ "<ulink url='&YOCTO_DOCS_ADT_URL;#using-an-existing-toolchain-tarball'>Using a Cross-Toolchain Tarball</ulink>" and
|
|
|
+ "<ulink url='&YOCTO_DOCS_ADT_URL;#using-the-toolchain-from-within-the-build-tree'>Using BitBake and the Build Directory</ulink>" sections in the Yocto Project Application Developer's Guide.
|
|
|
+ </para>
|
|
|
+ </section>
|
|
|
+
|
|
|
+ <section id='downloading-the-pre-built-linux-kernel'>
|
|
|
+ <title>Downloading the Pre-Built Linux Kernel</title>
|
|
|
+
|
|
|
+ <para>
|
|
|
+ You can download the pre-built Linux kernel suitable for running in the QEMU emulator from
|
|
|
+ <ulink url='&YOCTO_QEMU_DL_URL;'></ulink>.
|
|
|
+ Be sure to use the kernel that matches the architecture you want to simulate.
|
|
|
+ Download areas exist for the five supported machine architectures:
|
|
|
+ <filename>qemuarm</filename>, <filename>qemumips</filename>, <filename>qemuppc</filename>,
|
|
|
+ <filename>qemux86</filename>, and <filename>qemux86-64</filename>.
|
|
|
+ </para>
|
|
|
+
|
|
|
+ <para>
|
|
|
+ Most kernel files have one of the following forms:
|
|
|
+ <literallayout class='monospaced'>
|
|
|
+ *zImage-qemu<replaceable>arch</replaceable>.bin
|
|
|
+ vmlinux-qemu<replaceable>arch</replaceable>.bin
|
|
|
+
|
|
|
+ Where:
|
|
|
+ <replaceable>arch</replaceable> is a string representing the target architecture:
|
|
|
+ x86, x86-64, ppc, mips, or arm.
|
|
|
+ </literallayout>
|
|
|
+ </para>
|
|
|
+
|
|
|
+ <para>
|
|
|
+ You can learn more about downloading a Yocto Project kernel in the
|
|
|
+ "<ulink url='&YOCTO_DOCS_DEV_URL;#local-kernel-files'>Yocto Project Kernel</ulink>"
|
|
|
+ bulleted item in the Yocto Project Development Manual.
|
|
|
+ </para>
|
|
|
+ </section>
|
|
|
+
|
|
|
+ <section id='downloading-the-filesystem'>
|
|
|
+ <title>Downloading the Filesystem</title>
|
|
|
+
|
|
|
+ <para>
|
|
|
+ You can also download the filesystem image suitable for your target architecture from
|
|
|
+ <ulink url='&YOCTO_QEMU_DL_URL;'></ulink>.
|
|
|
+ Again, be sure to use the filesystem that matches the architecture you want
|
|
|
+ to simulate.
|
|
|
+ </para>
|
|
|
+
|
|
|
+ <para>
|
|
|
+ The filesystem image has two tarball forms: <filename>ext3</filename> and
|
|
|
+ <filename>tar</filename>.
|
|
|
+ You must use the <filename>ext3</filename> form when booting an image using the
|
|
|
+ QEMU emulator.
|
|
|
+ The <filename>tar</filename> form can be flattened out in your host development system
|
|
|
+ and used for build purposes with the Yocto Project.
|
|
|
+ <literallayout class='monospaced'>
|
|
|
+ core-image-<replaceable>profile</replaceable>-qemu<replaceable>arch</replaceable>.ext3
|
|
|
+ core-image-<replaceable>profile</replaceable>-qemu<replaceable>arch</replaceable>.tar.bz2
|
|
|
+
|
|
|
+ Where:
|
|
|
+ <replaceable>profile</replaceable> is the filesystem image's profile:
|
|
|
+ lsb, lsb-dev, lsb-sdk, lsb-qt3, minimal, minimal-dev, sato,
|
|
|
+ sato-dev, or sato-sdk. For information on these types of image
|
|
|
+ profiles, see the "<ulink url='&YOCTO_DOCS_REF_URL;#ref-images'>Images</ulink>"
|
|
|
+ chapter in the Yocto Project Reference Manual.
|
|
|
+
|
|
|
+ <replaceable>arch</replaceable> is a string representing the target architecture:
|
|
|
+ x86, x86-64, ppc, mips, or arm.
|
|
|
+ </literallayout>
|
|
|
+ </para>
|
|
|
+ </section>
|
|
|
+
|
|
|
+ <section id='setting-up-the-environment-and-starting-the-qemu-emulator'>
|
|
|
+ <title>Setting Up the Environment and Starting the QEMU Emulator</title>
|
|
|
+
|
|
|
+ <para>
|
|
|
+ Before you start the QEMU emulator, you need to set up the emulation environment.
|
|
|
+ The following command form sets up the emulation environment.
|
|
|
+ <literallayout class='monospaced'>
|
|
|
+ $ source &YOCTO_ADTPATH_DIR;/environment-setup-<replaceable>arch</replaceable>-poky-linux-<replaceable>if</replaceable>
|
|
|
+
|
|
|
+ Where:
|
|
|
+ <replaceable>arch</replaceable> is a string representing the target architecture:
|
|
|
+ i586, x86_64, ppc603e, mips, or armv5te.
|
|
|
+
|
|
|
+ <replaceable>if</replaceable> is a string representing an embedded application binary interface.
|
|
|
+ Not all setup scripts include this string.
|
|
|
+ </literallayout>
|
|
|
+ </para>
|
|
|
+
|
|
|
+ <para>
|
|
|
+ Finally, this command form invokes the QEMU emulator
|
|
|
+ <literallayout class='monospaced'>
|
|
|
+ $ runqemu <replaceable>qemuarch</replaceable> <replaceable>kernel-image</replaceable> <replaceable>filesystem-image</replaceable>
|
|
|
+
|
|
|
+ Where:
|
|
|
+ <replaceable>qemuarch</replaceable> is a string representing the target architecture: qemux86, qemux86-64,
|
|
|
+ qemuppc, qemumips, or qemuarm.
|
|
|
+
|
|
|
+ <replaceable>kernel-image</replaceable> is the architecture-specific kernel image.
|
|
|
+
|
|
|
+ <replaceable>filesystem-image</replaceable> is the .ext3 filesystem image.
|
|
|
+
|
|
|
+ </literallayout>
|
|
|
+ </para>
|
|
|
+
|
|
|
+ <para>
|
|
|
+ Continuing with the example, the following two commands setup the emulation
|
|
|
+ environment and launch QEMU.
|
|
|
+ This example assumes the root filesystem (<filename>.ext3</filename> file) and
|
|
|
+ the pre-built kernel image file both reside in your home directory.
|
|
|
+ The kernel and filesystem are for a 32-bit target architecture.
|
|
|
+ <literallayout class='monospaced'>
|
|
|
+ $ cd $HOME
|
|
|
+ $ source &YOCTO_ADTPATH_DIR;/environment-setup-i586-poky-linux
|
|
|
+ $ runqemu qemux86 bzImage-qemux86.bin \
|
|
|
+ core-image-sato-qemux86.ext3
|
|
|
+ </literallayout>
|
|
|
+ </para>
|
|
|
+
|
|
|
+ <para>
|
|
|
+ The environment in which QEMU launches varies depending on the filesystem image and on the
|
|
|
+ target architecture.
|
|
|
+ For example, if you source the environment for the ARM target
|
|
|
+ architecture and then boot the minimal QEMU image, the emulator comes up in a new
|
|
|
+ shell in command-line mode.
|
|
|
+ However, if you boot the SDK image, QEMU comes up with a GUI.
|
|
|
+ <note>Booting the PPC image results in QEMU launching in the same shell in
|
|
|
+ command-line mode.</note>
|
|
|
+ </para>
|
|
|
+ </section>
|
|
|
+</section>
|
|
|
+
|
|
|
